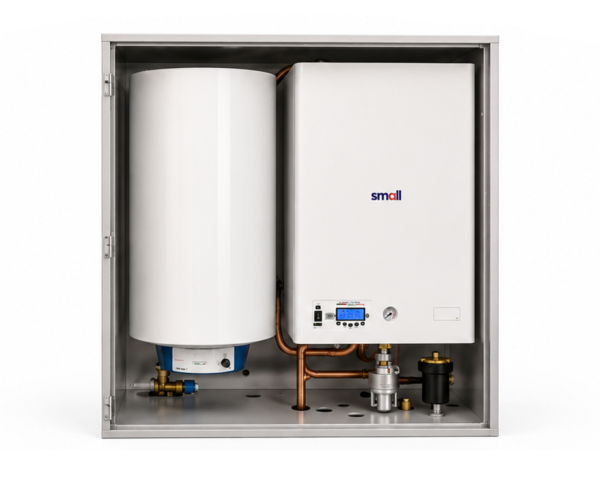

Guival Small.CxINSIDE 12kW – Electric Combi Boiler for outdoor installation with storage tank for central heating, shower & bath

Description

• GUIVAL.C with storage tank (35 Litres) in weatherproof casing, a small yet powerful electric combi boiler for properties with a bath & shower and central heating - manufactured in Italy.
• External installation with indoor space saving and increased safety.
• Ideal for residential or commercial use.
• Clean and safe solution for heating and hot water.
• Continuous hot water - suitable for properties with a shower (the use of a good thermostatic shower mixer is recommended to experience the best quality shower possible).
• Can power up to 14 radiators or up to 100m2 of underfloor heating.
• 240v single phase.
• Uses 50 Amps.
• Use a 10mm cable
• Flow rate: shower <10 Lt/min : bath <7Lt/min (Click here to check the hot water graph).
• Completely silent due to Triac-Based Technology.
• Modulates from 2kW – 12kW.
• Digitally displayed temperatures.
• Simply connect the flow and return from the heating circuit and the cold supply for HW.
• All components, for the normal function of the boiler, are included inside.
• Hot water limited to 60°C.
• Central heating limited to 75°C
• Installer and user-friendly.
• 5 years warranty (Subject to TCs and registration of warranty.  A boiler service every 2 years is recommended).

PLEASE NOTE: THE BOILER NEEDS 300mm CLEARANCE AT BOTTOM ____________________________________________ Guival.C by Guival: Hot water delivery 10 litres/min Constant. 40°C - 60°C (depending on the incoming mains water temperature).

To use of a Guival.BPL to fill a bath, reduce the flow rate (recommended flow rate 5-7 Lt/min), which could take 12 min+.

Can only supply hot water at one outlet at a time due to pressure loss if you open two outlets.

Uses a full 12kW or 50 Amps.

Graph (Hot water output):

____________________________________________

The GUIVAL BPL is available in 12kW.

It is manufactured in Italy and fully certified by UK/EU certification bodies.

We have a team of professional installers trained on how to install, service and repair our boilers to provide support remotely or on-site across the UK.

Delivery Options: NEXT-WORKING-DAY, STANDARD Delivery (3-5 working days) and COLLECTION from our WINDSOR HQ are available.
