Description
| Brand | |
| Button Colour | Red |
| Casing Colour | Light Grey |
| Hertz (Hz) | 50/60 Hz |
| IP Rating | IP65 |
| Knockout Size | M20/25 |
| Max. Rated Motor Load | 18kW/22 kW |
| Number of Poles | 4-Pole |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |

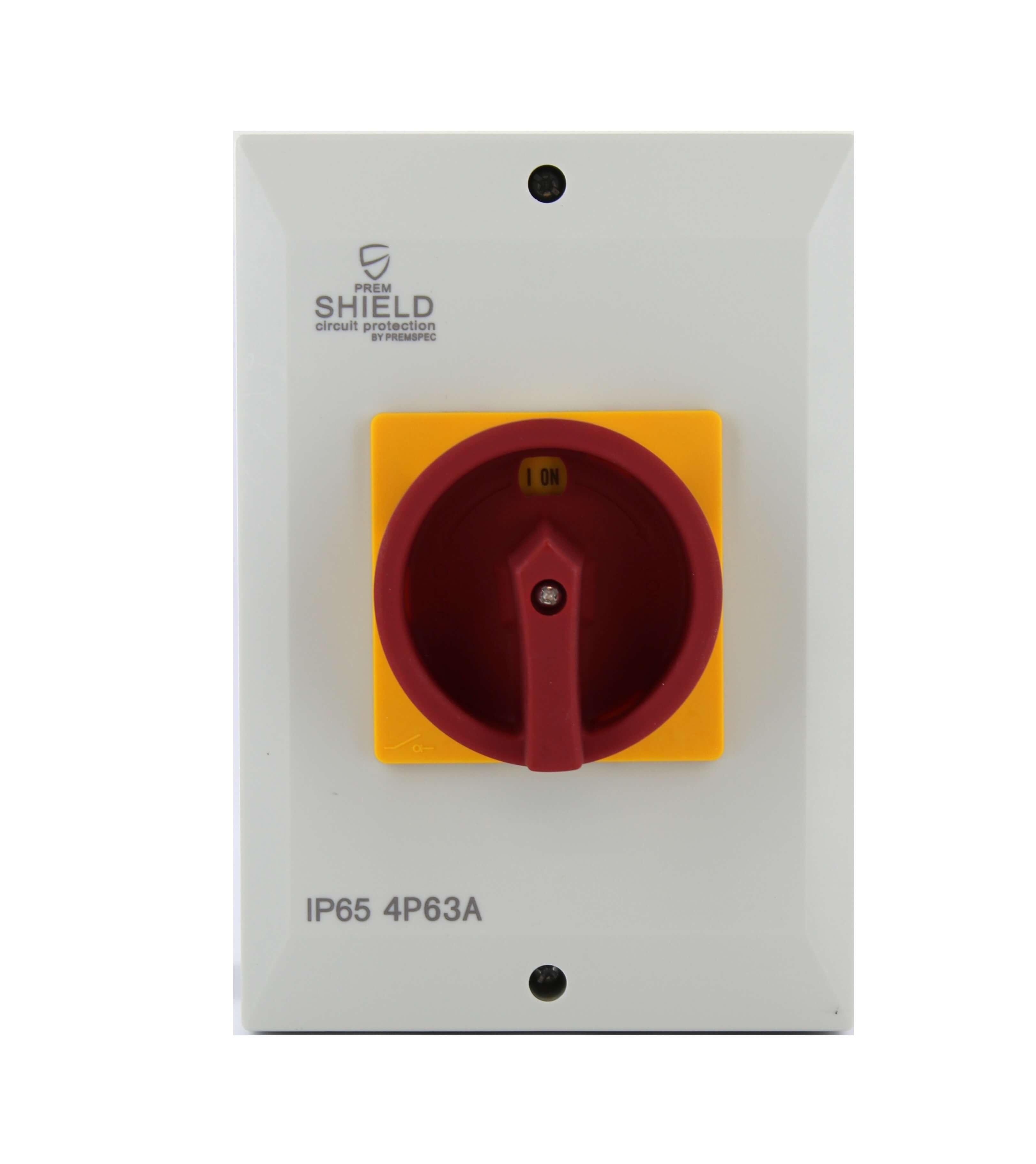

| Product Type | Rotary Isolator Switch |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Operational Voltage (Ue) | 230/400 V |
| Rated Uninterrupted Current (Iu) | 63 A |
| Switch Operation | Rotary |
| Terminal Capacity | Terminals accept up to 1 x 16mm² cable |
| Utilisation Category | AC-23A |
