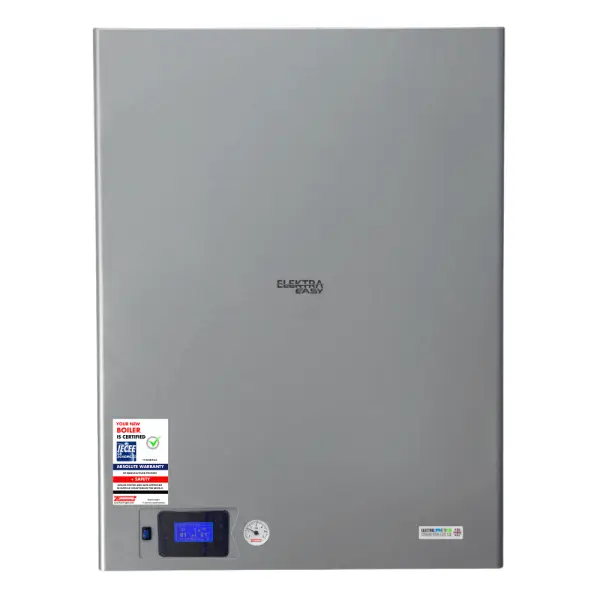

EASY.BPL 12kW Electric Combi Boiler for Heating + bath/shower

Name: EASY.BPL 12kW Electric Combi Boiler for Heating + bath/shower
SKU: EASY.BPL
Price: 1900 GBP
Availability: InStock

SKU: EASY.BPL

£1,900.00

In stock

(£1,900 exclusive of VAT)

Elektra electric boilers, British designed and manufactured in Italy

12kW electric combi boiler, Single Phase (Suitable for properties with 80A or 100A Main fuse)

Wall-hung electric combi boiler with built-in smart controls

Fully certified under IEC, IMQ, IECEE and Harmonics and Flicker and tested by IMQ

Instant combi + cylinder (Suitable for bath & shower)

Gives heating & instantaneous hot water at 40-65°C – Click here to check the hot water graph). A good quality thermostatic shower mixer is recommended to get the best performance.

Hot water is limited to 65°C. Central heating limited to 75°C

Flow rate <13lt/min

Eco & Comfort mode (Hot water)

Summer & Winter mode (Central Heating)

Compatible with solar panels

Fully double insulated

875 (H) x 660 (W) x 315 (D) (mm) - Weight (Dry): 58kg

NOW with up to 10 years warranty! (Subject to TCs . The boiler requires registration and to be serviced every 2 years).

Bath & Shower

Also available in 6kW, 8kW (Single Phase) and 18kW and 24kW (Three Phase)

Now, for your peace of mind, we are offering our ELEKTRA WARRANTY BUNDLE. This bundle option includes all the minimal requirements to make sure your electric combi boiler complies with the requirements of the warranty TCs.

The Elektra Essential Warranty Bundle includes:

1 x ELEKTRA EASY.BPL electric combi boiler
1 x Isolation Valve
1 x Rotary Isolator Switch
1 x Central Heating Filter Pack

The Elektra Complete Warranty Bundle includes:

Elektra Essential Warranty Bundle + Honeywell Wireless Thermostat

DOWNLOAD:

Select options

Checkout is handled securely by Electric Combi Boilers Company.

Description

Elektra EASY.BPL 12kW Electric Combi Boiler

British-designed, Italian-made. A smart, silent heating and hot water solution with no gas required.

Technical Highlights

Wall-hung electric combi boiler with smart built-in controls

Delivers heating and instant hot water between 40–65°C

Hot water capped at 65°C, central heating up to 75°C

Flow rate: up to 13 litres/min

Suitable for properties with up to 14 radiators or ~100m² underfloor heating

12kW power (240V single-phase), requires 80A or 100A main fuse

Minimum 10mm² cable, 50A breaker

Modulates between 2–12kW based on demand

Fully certified: IEC, IMQ, IECEE, Harmonics and Flicker

Built-in Cylinder & Components

37.5L glass-lined steel cylinder with magnesium anode

Fully insulated internal tank—no external cylinder needed

Central heating reservoir adds another 10–12L capacity

Triac-based tech for totally silent operation

Digital temperature display

Solar PV compatible

All core components included inside

Baths & Showers

Preset to 8L/min for efficient bath filling

Delivers up to 13L/min for thermostatic showers

With 2-bar mains pressure, can support 2 simultaneous showers (mixed to 6–8L/min)

Designed to fill a standard UK bath (1700x700mm) in line with BS6700 guidance

Dimensions & Installation

Boiler size: 875(H) x 660(W) x 300(D) mm

Weight: 60kg (dry)

Min clearance: 300mm below the boiler

Install in ventilated space to avoid F8 error

If mains pressure exceeds 2 bar, install PRV and 2L potable expansion vessel

Available kW Options

Single Phase: 6kW, 8kW, 12kW,

Three Phase: 18kW, 24kW

Warranty

Up to 10 years warranty (subject to registration + boiler service every 2 years).

Smart Functionality:

Built-in timer (7-day) with on-screen or app-based scheduling

SMART modes:
- ECO Mode: Uses stored hot water, reheat time 20–30 min
- COMFORT Mode: Delivers continuous hot water on demand

Central Heating:
- Summer Mode (CH OFF)
- Winter Mode (CH ON)

Anti-Legionella cycle: auto raises water temp to 65°C

Control from anywhere using the MyBoiler App

Compatible with TRVs or external room thermostats (optional)

____________________________________________

Elektra Electric Combi Boilers BP range:

Difference between the SMART.BPC and the SMART.BPL: Both boilers have the same components and functionalities, the only differences being their size and the way the components are arranged inside the boiler. The SMART.BPC (C stands for COMPACT) is less wider (450 mm) and deeper (430 mm) than the SMART.BPL ( width: 660 mm, depth 300 mm). Both are 875 mm in height and 60 kg in weight (dry weight).

Important facts to remember:

Continuous hot water supply: an average shower uses 21-25 litres of water, the hot water contained in the in-built cylinder can provide enough hot water for a normal duration shower (5-8 min) in ECO mode. If set in COMFORT mode, the delivery of hot water is on-demand and continuous, similar to Elektra C, as the in-built cylinder is filled with instant hot water.

Bath filling efficiency: according to BS6700, a standard 1700 x 700 bath requires 100 litres of water at 40°C, split into 60% hot water (HW) and 40% cold water (CW). The Elektra BP (preset at 8 litres per minute) is the only electric combi boiler that can fill a bath with hot water.

Optimal mains pressure: The cold water mains pressure entering the boiler should not exceed 2 bar. If the pressure exceeds 2 bar, it is recommended to install a pressure-reducing valve and set it between 1.5 and 2.0 bar pressure and/or 2 Litre potable expansion vessel.
