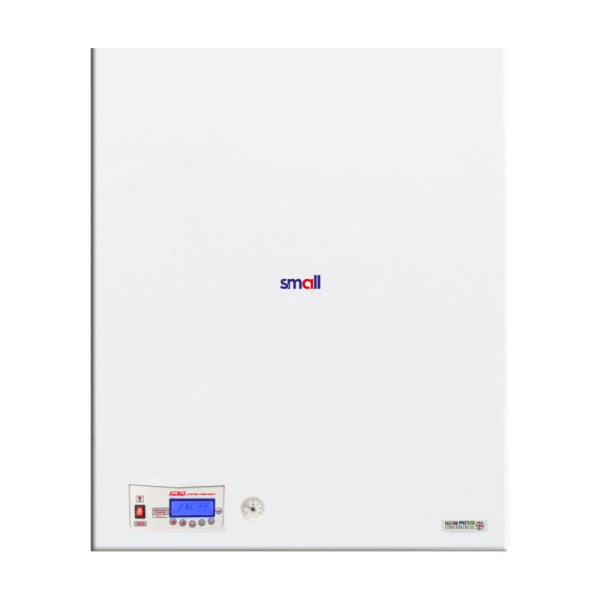

Guival Small.BPL 12kW – Compact Electric Combi Boiler for central heating & bath / shower

Description

• GUIVAL Small.BPL, a compact electric combi boiler recommended for small properties with a bath and shower/s and central heating - Manufactured in Italy.
• Clean and safe solution for heating and hot water solution.
• Continuous hot water for its small size - suitable for small properties with a bath and shower (the use of a good thermostatic shower mixer is recommended to experience the best quality shower possible).
• Can power up to 14 radiators or up to 100m2 of underfloor heating.
• 240v single phase.
• Uses 50 Amps.
• Use a 10mm cable.
• 30 L glass lined, insulated steel cylinder with inspection flange, fitted with magnesium anode, mounted with insulated boiler casing.
• Flow rate: <10 Lt/min (Check the hot water graph).
• Completely silent due to Triac-Based Technology.
• Modulates from 2kW – 12kW.
• Digitally displayed temperatures.
• Simply connect the flow and return from the heating circuit and the cold supply for HW.
• All components, for the normal function of the boiler, are included inside.
• Hot water limited to 60°C.
• Central heating limited to 75°C
• Installer and user-friendly.
• 5 years warranty (Subject to TCs and registration of warranty.  Boiler Service recommended every 2 years).

PLEASE NOTE: THE BOILER NEEDS 300mm CLEARANCE AT BOTTOM

____________________________________________

Guival.BPL by Guival:

Hot water delivery 10 litres/min Constant. 40°C - 60°C (depending on the incoming mains water temperature).

To use of a Guival.BPL to fill a bath, reduce the flow rate (recommended flow rate 5-7 Lt/min), which could take 12 min+.

Can only supply hot water at one outlet at a time due to pressure loss if you open two outlets.

Uses a full 12kW or 50 Amps.

Graph (Hot water output):

____________________________________________

The GUIVAL BPL is available in 12kW.

It is manufactured in Italy and fully certified by UK/EU certification bodies.
