Description

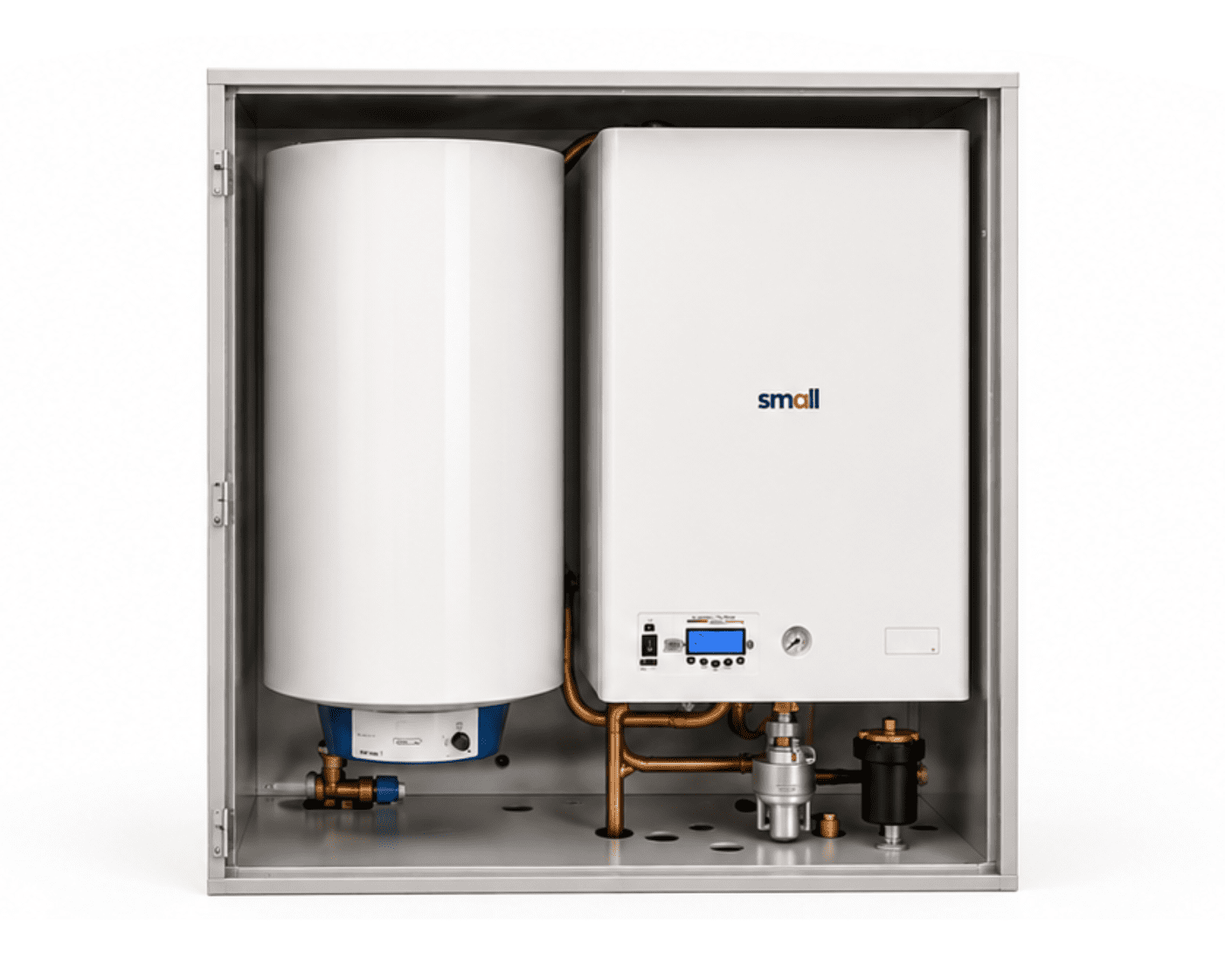

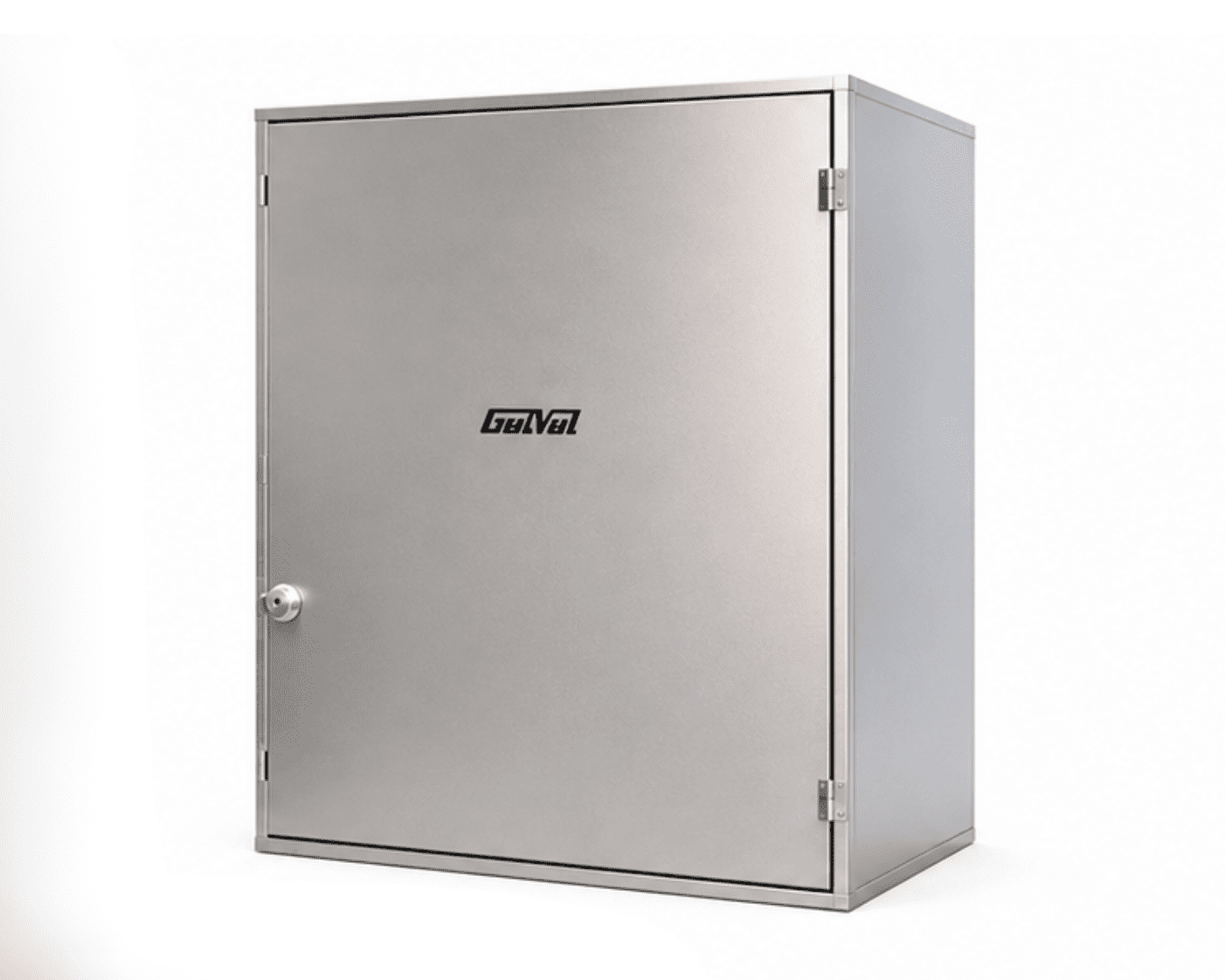

- GUIVAL.C with storage tank (35 Litres) in weatherproof casing, a small yet powerful electric combi boiler for properties with a bath & shower and central heating – manufactured in Italy.
- External installation with indoor space saving and increased safety.
- Ideal for residential or commercial use.
- Clean and safe solution for heating and hot water.
- Continuous hot water – suitable for properties with a shower (the use of a good thermostatic shower mixer is recommended to experience the best quality shower possible).
- Can power up to 14 radiators or up to 100m2 of underfloor heating.
- 240v single phase.
- Uses 50 Amps.
- Use a 10mm cable
- Flow rate: shower <10 Lt/min : bath <7Lt/min (Click here to check the hot water graph).
- Completely silent due to Triac-Based Technology.
- Modulates from 2kW – 12kW.
- Digitally displayed temperatures.
- Simply connect the flow and return from the heating circuit and the cold supply for HW.
- All components, for the normal function of the boiler, are included inside.
- Hot water limited to 60°C.
- Central heating limited to 75°C
- Installer and user-friendly.
- 5 years warranty (Subject to TCs and registration of warranty. A boiler service every 2 years is recommended).
PLEASE NOTE: THE BOILER NEEDS 300mm CLEARANCE AT BOTTOM ____________________________________________ Guival.C by Guival: Hot water delivery 10 litres/min Constant. 40°C – 60°C (depending on the incoming mains water temperature).
To use of a Guival.BPL to fill a bath, reduce the flow rate (recommended flow rate 5-7 Lt/min), which could take 12 min+.
Can only supply hot water at one outlet at a time due to pressure loss if you open two outlets.
Uses a full 12kW or 50 Amps.
Graph (Hot water output):
____________________________________________
The GUIVAL BPL is available in 12kW.
It is manufactured in Italy and fully certified by UK/EU certification bodies.
We have a team of professional installers trained on how to install, service and repair our boilers to provide support remotely or on-site across the UK.
Delivery Options: NEXT-WORKING-DAY, STANDARD Delivery (3-5 working days) and COLLECTION from our WINDSOR HQ are available.
